Kauai Regional ITS Architecture

Service Packages For: Hawaii Department of Transportation, Airports Division, Kauai District - EM01-3


  EM01-3

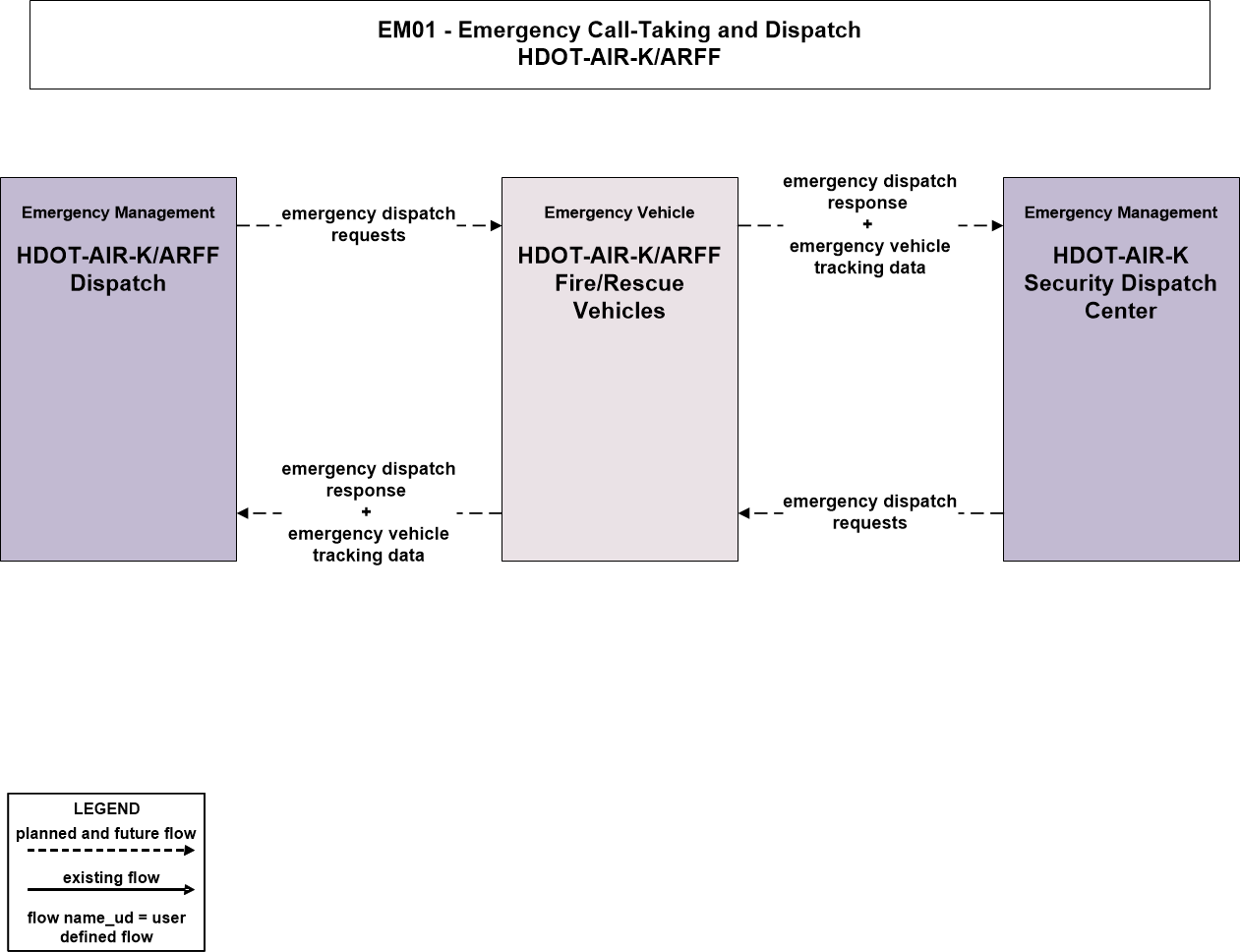

Scroll down to view list of elements, responsible agencies (stakeholders), candidate functional areas and requirements, and flows on this diagram.

List of Elements on this Diagram
Click on Element Name to go to Element Detail Page.
Element Name Stakeholder
HDOT-AIR-K/ARFF Dispatch Hawaii Department of Transportation, Airports Division, Kauai District
HDOT-AIR-K/ARFF Fire/Rescue Vehicles Hawaii Department of Transportation, Airports Division, Kauai District
HDOT-AIR-K Security Dispatch Center Hawaii Department of Transportation, Airports Division, Kauai District

List of Stakeholder Elements and Roles on this Diagram
Click on Element Name to go to Page with Element Details.
Click on Functional Area/Role to go to Page with Candidate Functional Requirements.
Stakeholder Element Name Functional Area/Role Functional Area Description
Hawaii Department of Transportation, Airports Division, Kauai District HDOT-AIR-K Security Dispatch Center Emergency Dispatch This equipment package tracks the location and status of emergency vehicles and dispatches these vehicles to incidents. Pertinent incident information is gathered from the public and other public safety agencies (see the Emergency Call-Taking equipment package) and relayed to the responding units. Incident status and the status of the responding units is tracked so that additional units can be dispatched and/or unit status can be returned to available when the incident is cleared and closed.
Hawaii Department of Transportation, Airports Division, Kauai District HDOT-AIR-K/ARFF Dispatch Emergency Dispatch This equipment package tracks the location and status of emergency vehicles and dispatches these vehicles to incidents. Pertinent incident information is gathered from the public and other public safety agencies (see the Emergency Call-Taking equipment package) and relayed to the responding units. Incident status and the status of the responding units is tracked so that additional units can be dispatched and/or unit status can be returned to available when the incident is cleared and closed.
Hawaii Department of Transportation, Airports Division, Kauai District HDOT-AIR-K/ARFF Fire/Rescue Vehicles On-board EV En Route Support This on-board equipment package supports dispatch, routing, and tracking of an emergency vehicle. Dispatch and routing information are received and presented to the driver and vehicle location and status are tracked and provided back to the dispatcher. This equipment package supports traffic signal preemption via short range communication directly with signal control equipment and sends alert messages to surrounding vehicles. It also supports communications with care facilities, sharing patient status and care facility status between the en route emergency vehicle and the care facility.

List of Flows on this Diagram
Click on Architecture Flow to go to Page with Applicable ITS Standards.
Source Element Architecture Flow Destination Element
HDOT-AIR-K/ARFF Fire/Rescue Vehicles emergency vehicle tracking data HDOT-AIR-K Security Dispatch Center
HDOT-AIR-K/ARFF Fire/Rescue Vehicles emergency dispatch response HDOT-AIR-K Security Dispatch Center
HDOT-AIR-K/ARFF Fire/Rescue Vehicles emergency vehicle tracking data HDOT-AIR-K/ARFF Dispatch
HDOT-AIR-K/ARFF Fire/Rescue Vehicles emergency dispatch response HDOT-AIR-K/ARFF Dispatch
HDOT-AIR-K Security Dispatch Center emergency dispatch requests HDOT-AIR-K/ARFF Fire/Rescue Vehicles
HDOT-AIR-K/ARFF Dispatch emergency dispatch requests HDOT-AIR-K/ARFF Fire/Rescue Vehicles
