Kauai Regional ITS Architecture

Service Packages For: County of Kauai - Police Department - EM01-1

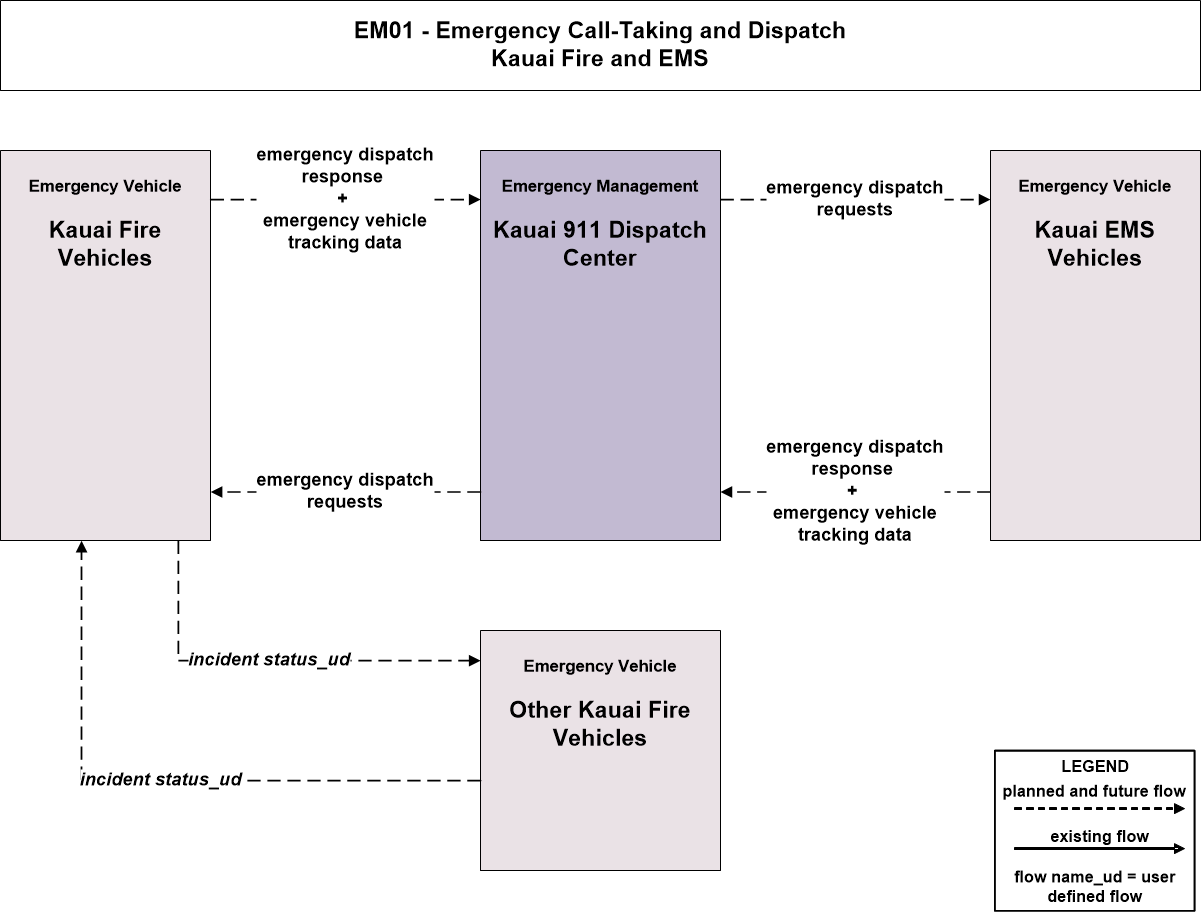

  EM01-1
Scroll down to view list of elements, responsible agencies (stakeholders), candidate functional areas and requirements, and flows on this diagram.

List of Elements on this Diagram
Click on Element Name to go to Element Detail Page.
Element Name Stakeholder
Kauai 911 Dispatch Center County of Kauai - Police Department
Kauai EMS Vehicles Medical Transportation
Kauai Fire Vehicles County of Kauai - Fire Department
Other Kauai Fire Vehicles County of Kauai - Fire Department

List of Stakeholder Elements and Roles on this Diagram
Click on Element Name to go to Page with Element Details.
Click on Functional Area/Role to go to Page with Candidate Functional Requirements.
Stakeholder Element Name Functional Area/Role Functional Area Description
County of Kauai - Fire Department Kauai Fire Vehicles On-board EV En Route Support This on-board equipment package supports dispatch, routing, and tracking of an emergency vehicle. Dispatch and routing information are received and presented to the driver and vehicle location and status are tracked and provided back to the dispatcher. This equipment package supports traffic signal preemption via short range communication directly with signal control equipment and sends alert messages to surrounding vehicles. It also supports communications with care facilities, sharing patient status and care facility status between the en route emergency vehicle and the care facility.
County of Kauai - Police Department Kauai 911 Dispatch Center Emergency Call-Taking This equipment package supports the emergency call-taker, collecting available information about the caller and the reported emergency, and forwarding this information to other equipment packages that formulate and manage the emergency response. This equipment package receives 9-1-1, 7-digit local access, and motorist call-box calls and interfaces to other agencies to assist in the verification and assessment of the emergency and to forward the emergency information to the appropriate response agency.
County of Kauai - Police Department Kauai 911 Dispatch Center Emergency Dispatch This equipment package tracks the location and status of emergency vehicles and dispatches these vehicles to incidents. Pertinent incident information is gathered from the public and other public safety agencies (see the Emergency Call-Taking equipment package) and relayed to the responding units. Incident status and the status of the responding units is tracked so that additional units can be dispatched and/or unit status can be returned to available when the incident is cleared and closed.
Medical Transportation Kauai EMS Vehicles On-board EV En Route Support This on-board equipment package supports dispatch, routing, and tracking of an emergency vehicle. Dispatch and routing information are received and presented to the driver and vehicle location and status are tracked and provided back to the dispatcher. This equipment package supports traffic signal preemption via short range communication directly with signal control equipment and sends alert messages to surrounding vehicles. It also supports communications with care facilities, sharing patient status and care facility status between the en route emergency vehicle and the care facility.

List of Flows on this Diagram
Click on Architecture Flow to go to Page with Applicable ITS Standards.
Source Element Architecture Flow Destination Element
Kauai Fire Vehicles emergency vehicle tracking data Kauai 911 Dispatch Center
Kauai Fire Vehicles emergency dispatch response Kauai 911 Dispatch Center
Kauai EMS Vehicles emergency vehicle tracking data Kauai 911 Dispatch Center
Kauai EMS Vehicles emergency dispatch response Kauai 911 Dispatch Center
Other Kauai Fire Vehicles incident status_ud Kauai Fire Vehicles
Kauai 911 Dispatch Center emergency dispatch requests Kauai Fire Vehicles
Kauai 911 Dispatch Center emergency dispatch requests Kauai EMS Vehicles
Kauai Fire Vehicles incident status_ud Other Kauai Fire Vehicles


The Hawaiian language uses two diacritical markings. The 'okina is a glottal stop; and the kahako is a macron. The State of Hawaii strongly encourages the use of Hawaiian diacritical markings. The National ITS Architecture tool, Turbo Architecture, does not allow for the Hawaiian diacritical markings to be input and as such, customized service package diagrams, operational concepts and other outputs from Turbo are unable to reflect the diacritical markings. To ensure consistency in this ITS Architecture website, no Hawaiian diacritical markings will be used.
