Maui Regional ITS Architecture

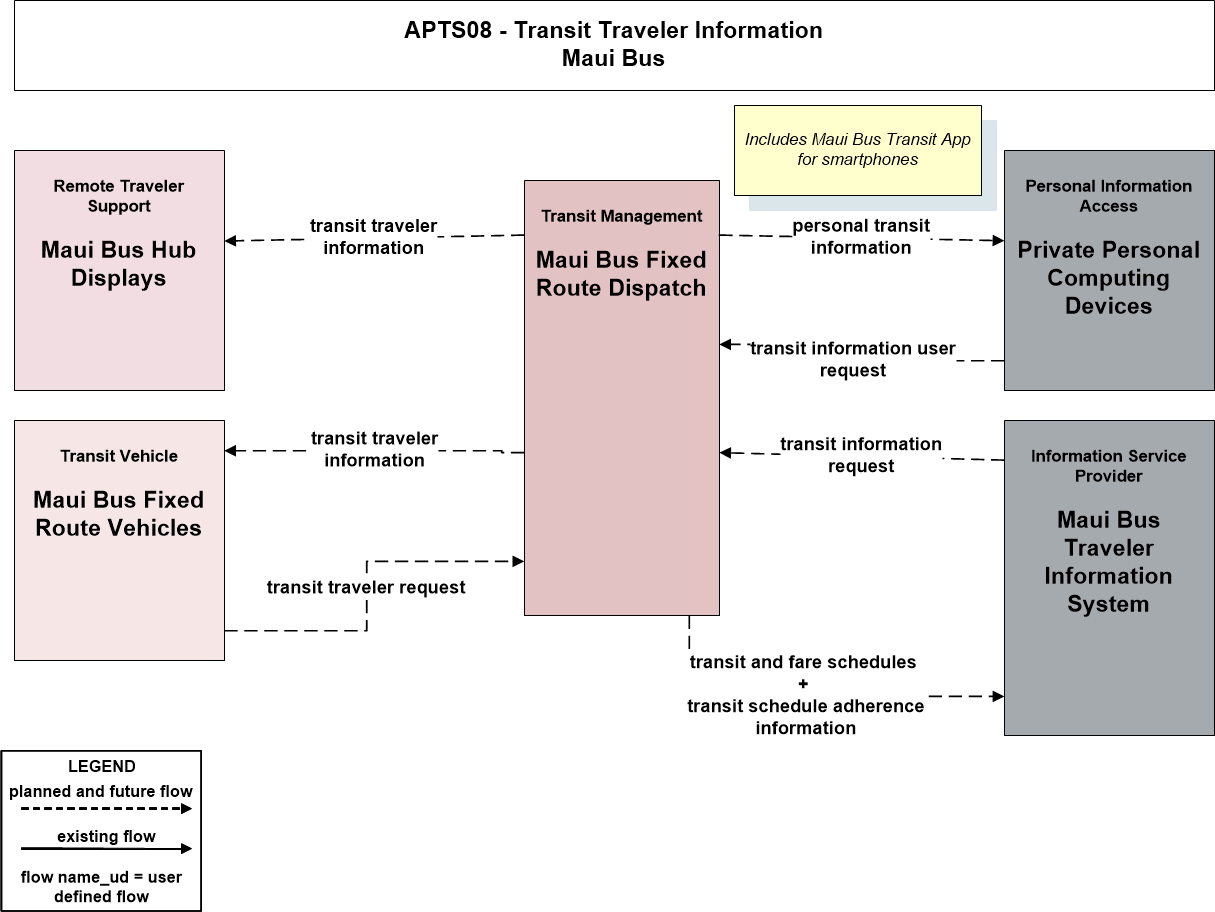

Service Packages For: Private Travelers - APTS08-1


  APTS08-1
Scroll down to view list of elements, responsible agencies (stakeholders), candidate functional areas and requirements, and flows on this diagram.

List of Elements on this Diagram
Click on Element Name to go to Element Detail Page.
Element Name Stakeholder
Maui Bus Fixed Route Dispatch County of Maui Department of Transportation
Maui Bus Hub Displays County of Maui Department of Transportation
Maui Bus Traveler Information System County of Maui Department of Transportation
Maui Bus Fixed Route Vehicles County of Maui Department of Transportation
Private Personal Computing Devices Private Travelers

List of Stakeholder Elements and Roles on this Diagram
Click on Element Name to go to Page with Element Details.
Click on Functional Area/Role to go to Page with Candidate Functional Requirements.
Stakeholder Element Name Functional Area/Role Functional Area Description
County of Maui Department of Transportation Maui Bus Fixed Route Dispatch Transit Center Information Services This equipment package collects the latest available information for a transit service and makes it available to transit customers and to Information Service Providers for further distribution. Customers are provided information at transit stops and other public transportation areas before they embark and on-board the transit vehicle once they are enroute. Information provided can include the latest available information on transit routes, schedules, transfer options, fares, real-time schedule adherence, current incidents, weather conditions, yellow pages, and special events. In addition to general service information, tailored information (e.g., itineraries) are provided to individual transit users.
County of Maui Department of Transportation Maui Bus Fixed Route Vehicles On-board Transit Information Services This equipment package furnishes en-route transit users with real-time travel-related information on-board a transit vehicle. Current information that can be provided to transit users includes transit routes, schedules, transfer options, fares, real-time schedule adherence, current incidents, weather conditions, non-motorized transportation services, and special events are provided. In addition to tailored information for individual transit users, this equipment package also supports general annunciation and/or display of general schedule information, imminent arrival information, and other information of general interest to transit users.
County of Maui Department of Transportation Maui Bus Hub Displays Remote Transit Information Services This equipment package furnishes transit users with real-time travel-related information at transit stops, multi-modal transfer points, and other public transportation areas. It provides transit users with information on transit routes, schedules, transfer options, available services, fares, and real-time schedule adherence. In addition to tailored information for individual transit users, this equipment package supports general annunciation and/or display of imminent arrival information and other information of general interest to transit users.
County of Maui Department of Transportation Maui Bus Traveler Information System ISP Traveler Data Collection This equipment package collects traveler-related data from other centers, performs data quality checks on the collected data and then consolidates, verifies, and refines the data and makes it available in a consistent format to applications that deliver traveler information. A broad range of traveler-related data is collected including traffic and road conditions, transit data, emergency information and advisories, weather data, special event information, traveler services, parking, multimodal data, and toll/pricing data. This equipment package also shares data with other information service providers.

List of Flows on this Diagram
Click on Architecture Flow to go to Page with Applicable ITS Standards.
Source Element Architecture Flow Destination Element
Private Personal Computing Devices transit information user request Maui Bus Fixed Route Dispatch
Maui Bus Fixed Route Vehicles transit traveler request Maui Bus Fixed Route Dispatch
Maui Bus Traveler Information System transit information request Maui Bus Fixed Route Dispatch
Maui Bus Fixed Route Dispatch transit traveler information Maui Bus Fixed Route Vehicles
Maui Bus Fixed Route Dispatch personal transit information Private Personal Computing Devices
Maui Bus Fixed Route Dispatch transit traveler information Maui Bus Hub Displays
Maui Bus Fixed Route Dispatch transit schedule adherence information Maui Bus Traveler Information System
Maui Bus Fixed Route Dispatch transit and fare schedules Maui Bus Traveler Information System


The Hawaiian language uses two diacritical markings. The 'okina is a glottal stop; and the kahako is a macron. The State of Hawaii strongly encourages the use of Hawaiian diacritical markings. The National ITS Architecture tool, Turbo Architecture, does not allow for the Hawaiian diacritical markings to be input and as such, customized service package diagrams, operational concepts and other outputs from Turbo are unable to reflect the diacritical markings. To ensure consistency in this ITS Architecture website, no Hawaiian diacritical markings will be used.
