Hawaii Statewide ITS Architecture

Service Packages For: Hawaii Department of Transportation - Highways Division - AVSS12-2


  AVSS12-2
Scroll down to view list of elements, responsible agencies (stakeholders), candidate functional areas and requirements, and flows on this diagram.

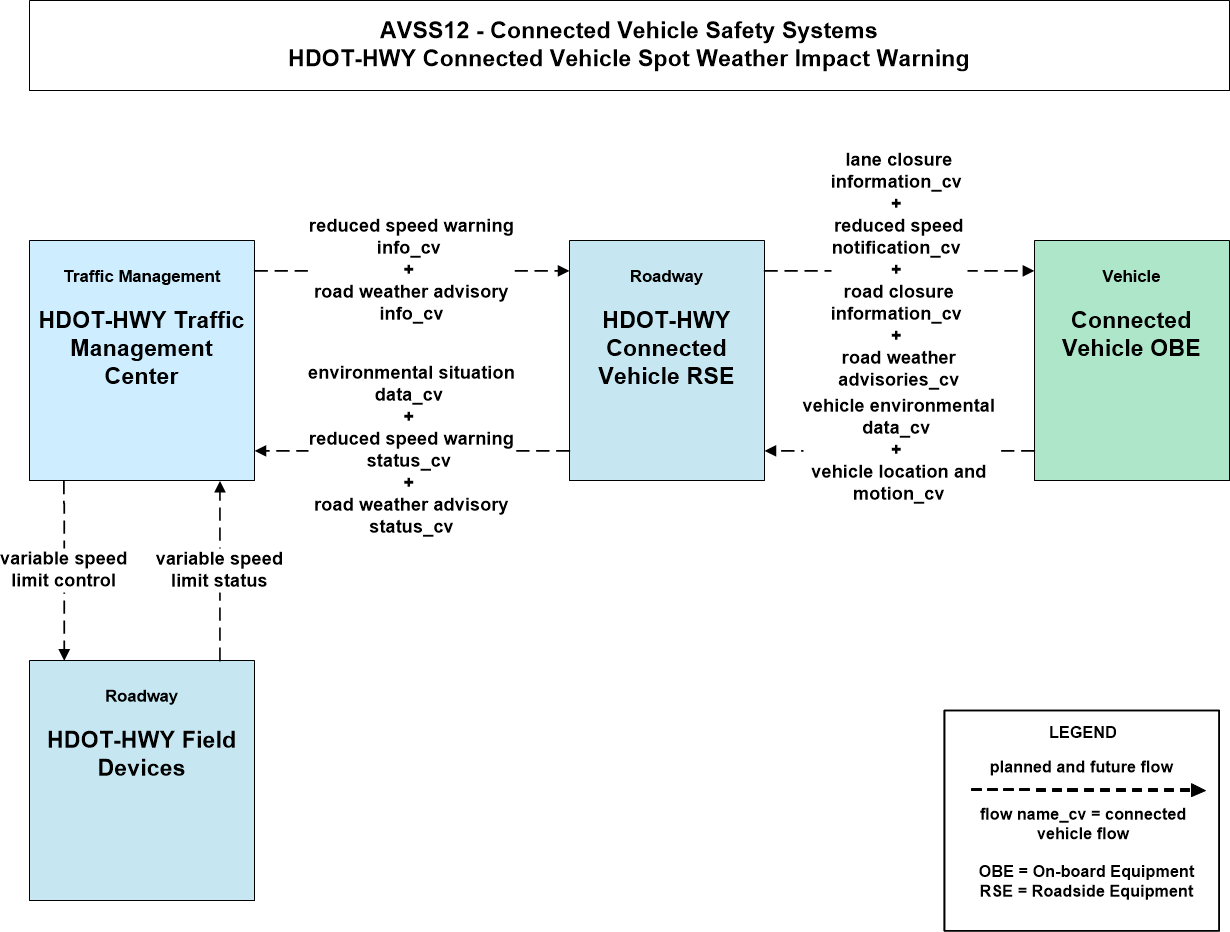

List of Elements on this Diagram
Click on Element Name to go to Element Detail Page.
Element Name Stakeholder
HDOT-HWY Traffic Management Center Hawaii Department of Transportation - Highways Division
HDOT-HWY Field Devices Hawaii Department of Transportation - Highways Division
HDOT-HWY Connected Vehicle RSE Hawaii Department of Transportation - Highways Division
Connected Vehicle OBE Private Personal Computing Devices

List of Stakeholder Elements and Roles on this Diagram
Click on Element Name to go to Page with Element Details.
Click on Functional Area/Role to go to Page with Candidate Functional Requirements.
Stakeholder Element Name Functional Area/Role Functional Area Description

List of Flows on this Diagram
Click on Architecture Flow to go to Page with Applicable ITS Standards.
Source Element Architecture Flow Destination Element
HDOT-HWY Field Devices variable speed limit status HDOT-HWY Traffic Management Center
HDOT-HWY Connected Vehicle RSE road weather advisory status_cv HDOT-HWY Traffic Management Center
HDOT-HWY Connected Vehicle RSE reduced speed warning status_cv HDOT-HWY Traffic Management Center
HDOT-HWY Connected Vehicle RSE environmental situation data_cv HDOT-HWY Traffic Management Center
HDOT-HWY Traffic Management Center variable speed limit control HDOT-HWY Field Devices
Connected Vehicle OBE vehicle location and motion_cv HDOT-HWY Connected Vehicle RSE
Connected Vehicle OBE vehicle environmental data_cv HDOT-HWY Connected Vehicle RSE
HDOT-HWY Traffic Management Center road weather advisory info_cv HDOT-HWY Connected Vehicle RSE
HDOT-HWY Traffic Management Center reduced speed warning info_cv HDOT-HWY Connected Vehicle RSE
HDOT-HWY Connected Vehicle RSE road weather advisories_cv Connected Vehicle OBE
HDOT-HWY Connected Vehicle RSE road closure information_cv Connected Vehicle OBE
HDOT-HWY Connected Vehicle RSE reduced speed notification_cv Connected Vehicle OBE
HDOT-HWY Connected Vehicle RSE lane closure information_cv Connected Vehicle OBE


The Hawaiian language uses two diacritical markings. The 'okina is a glottal stop; and the kahako is a macron. The State of Hawaii strongly encourages the use of Hawaiian diacritical markings. The National ITS Architecture tool, Turbo Architecture, does not allow for the Hawaiian diacritical markings to be input and as such, customized service package diagrams, operational concepts and other outputs from Turbo are unable to reflect the diacritical markings. To ensure consistency in this ITS Architecture website, no Hawaiian diacritical markings will be used.
