Hawaii Statewide ITS Architecture

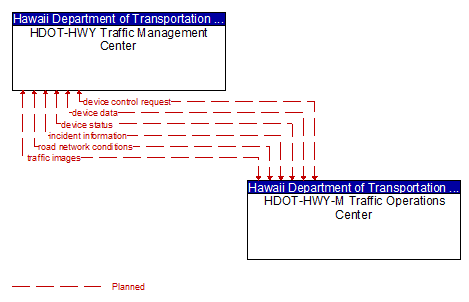

Interconnect: HDOT-HWY Traffic Management Center - HDOT-HWY-M Traffic Operations Center


(Click on image to view full-size)
HDOT-HWY Traffic Management Center - HDOT-HWY-M Traffic Operations Center

(E) = Existing Flow
(P) = Planned/Future Flow
(E/P) = Existing and Planned Flow - Flow appears as Existing and Planned
SourceArchitecture FlowsDestination
HDOT-HWY Traffic Management Center traffic images (P)
road network conditions (P)
incident information (P)
device status (P)
device data (P)
device control request (P)
HDOT-HWY-M Traffic Operations Center
HDOT-HWY-M Traffic Operations Center traffic images (P)
road network conditions (P)
incident information (P)
device status (P)
device data (P)
device control request (P)
HDOT-HWY Traffic Management Center
