Hawaii Statewide ITS Architecture

Interconnect: HDOT-HWY Traffic Management Center - HDOT-HWY Connected Vehicle RSE


(Click on image to view full-size)

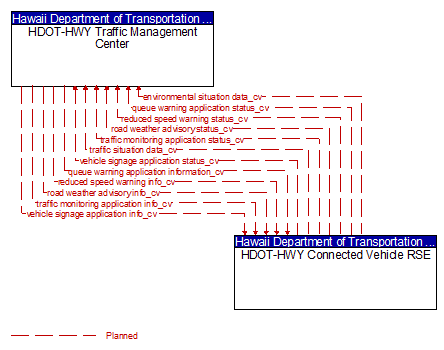

HDOT-HWY Traffic Management Center - HDOT-HWY Connected Vehicle RSE

(E) = Existing Flow
(P) = Planned/Future Flow
(E/P) = Existing and Planned Flow - Flow appears as Existing and Planned
SourceArchitecture FlowsDestination
HDOT-HWY Traffic Management Center traffic monitoring application info_cv (P)
queue warning application information_cv (P)
vehicle signage application info_cv (P)
road weather advisory info_cv (P)
reduced speed warning info_cv (P)
HDOT-HWY Connected Vehicle RSE
HDOT-HWY Connected Vehicle RSE traffic monitoring application status_cv (P)
traffic situation data_cv (P)
queue warning application status_cv (P)
vehicle signage application status_cv (P)
road weather advisory status_cv (P)
environmental situation data_cv (P)
reduced speed warning status_cv (P)
HDOT-HWY Traffic Management Center


The Hawaiian language uses two diacritical markings. The 'okina is a glottal stop; and the kahako is a macron. The State of Hawaii strongly encourages the use of Hawaiian diacritical markings. The National ITS Architecture tool, Turbo Architecture, does not allow for the Hawaiian diacritical markings to be input and as such, customized service package diagrams, operational concepts and other outputs from Turbo are unable to reflect the diacritical markings. To ensure consistency in this ITS Architecture website, no Hawaiian diacritical markings will be used.
