Hawaii Statewide ITS Architecture

Service Packages For: AVSS - AVSS12-1

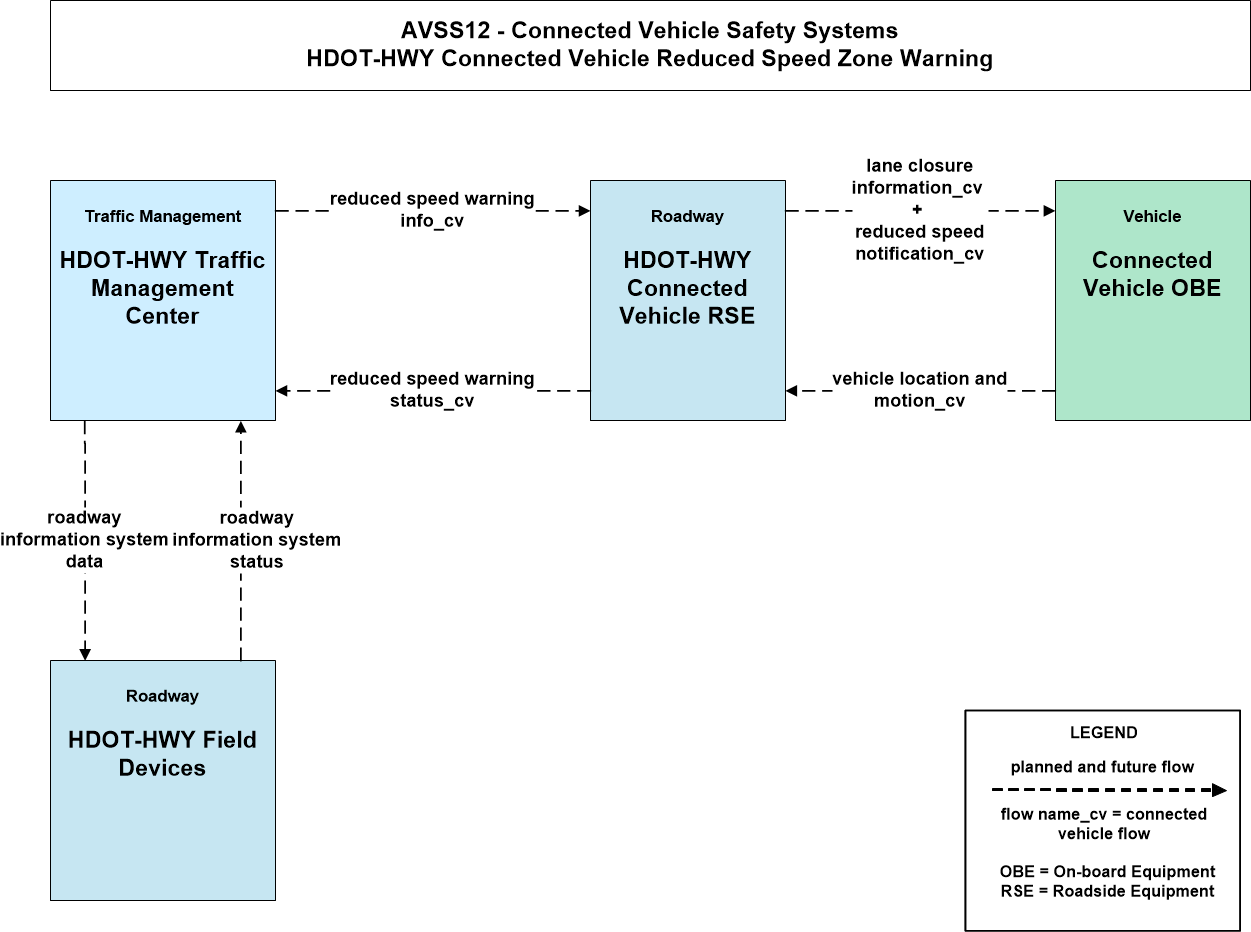

  AVSS12-1
Scroll down to view list of elements, responsible agencies (stakeholders), candidate functional areas and requirements, and flows on this diagram.

List of Elements on this Diagram
Click on Element Name to go to Element Detail Page.
Element Name Stakeholder
HDOT-HWY Traffic Management Center Hawaii Department of Transportation - Highways Division
HDOT-HWY Field Devices Hawaii Department of Transportation - Highways Division
HDOT-HWY Connected Vehicle RSE Hawaii Department of Transportation - Highways Division
Connected Vehicle OBE Private Personal Computing Devices

List of Stakeholder Elements and Roles on this Diagram
Click on Element Name to go to Page with Element Details.
Click on Functional Area/Role to go to Page with Candidate Functional Requirements.
Stakeholder Element Name Functional Area/Role Functional Area Description

List of Flows on this Diagram
Click on Architecture Flow to go to Page with Applicable ITS Standards.
Source Element Architecture Flow Destination Element
HDOT-HWY Field Devices roadway information system status HDOT-HWY Traffic Management Center
HDOT-HWY Connected Vehicle RSE reduced speed warning status_cv HDOT-HWY Traffic Management Center
HDOT-HWY Traffic Management Center roadway information system data HDOT-HWY Field Devices
Connected Vehicle OBE vehicle location and motion_cv HDOT-HWY Connected Vehicle RSE
HDOT-HWY Traffic Management Center reduced speed warning info_cv HDOT-HWY Connected Vehicle RSE
HDOT-HWY Connected Vehicle RSE reduced speed notification_cv Connected Vehicle OBE
HDOT-HWY Connected Vehicle RSE lane closure information_cv Connected Vehicle OBE
