Hawaii Statewide ITS Architecture

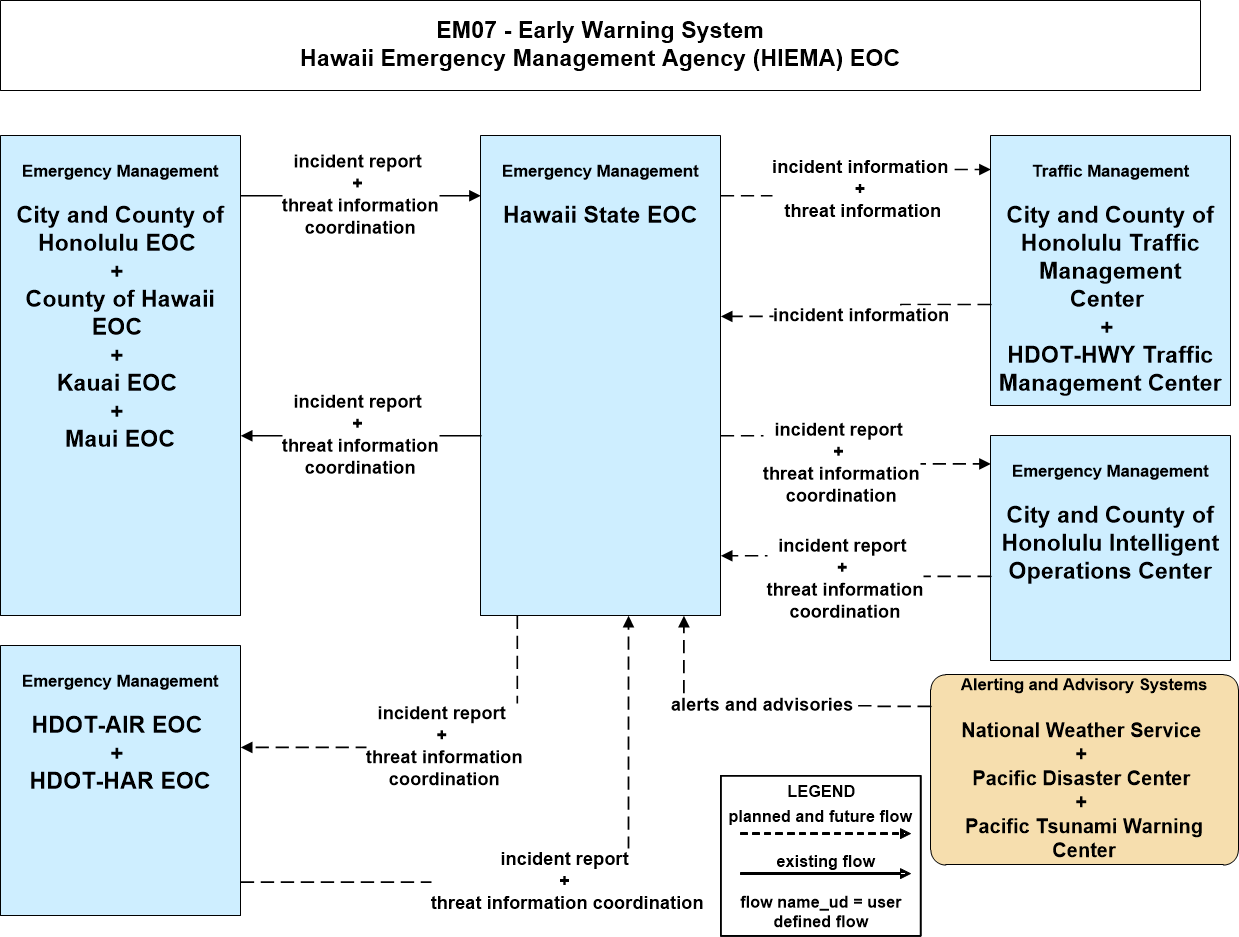

Service Packages For: County of Hawaii - Civil Defense Agency - EM07-1


  EM07-1
Scroll down to view list of elements, responsible agencies (stakeholders), candidate functional areas and requirements, and flows on this diagram.

List of Elements on this Diagram
Click on Element Name to go to Element Detail Page.
Element Name Stakeholder
Hawaii State EOC Hawaii Emergency Management Agency
City and County of Honolulu EOC City and County of Honolulu Department of Emergency Management
County of Hawaii EOC County of Hawaii - Civil Defense Agency
Kauai EOC County of Kauai - Civil Defense Agency
Maui EOC County of Maui - Civil Defense Agency
City and County of Honolulu Traffic Management Center City and County of Honolulu Department of Transportation Services
HDOT-HWY Traffic Management Center Hawaii Department of Transportation - Highways Division
HDOT-AIR EOC Hawaii Department of Transportation - Airports Division
HDOT-HAR EOC Hawaii Department of Transportation - Harbors Division
City and County of Honolulu Intelligent Operations Center City and County of Honolulu Department of Information Technology
National Weather Service NOAA
Pacific Disaster Center Pacific Disaster Center
Pacific Tsunami Warning Center NOAA

List of Stakeholder Elements and Roles on this Diagram
Click on Element Name to go to Page with Element Details.
Click on Functional Area/Role to go to Page with Candidate Functional Requirements.
Stakeholder Element Name Functional Area/Role Functional Area Description
City and County of Honolulu Department of Emergency Management City and County of Honolulu EOC Emergency Early Warning System This equipment package monitors alerting and advisory systems, information collected by ITS surveillance and sensors, and reports from other agencies and uses this information to identify potential, imminent, or in-progress major incidents or disasters. Notification is provided to other equipment packages that provide the emergency response, including public notification using ITS traveler information systems, where appropriate.
City and County of Honolulu Department of Information Technology City and County of Honolulu Intelligent Operations Center Emergency Early Warning System This equipment package monitors alerting and advisory systems, information collected by ITS surveillance and sensors, and reports from other agencies and uses this information to identify potential, imminent, or in-progress major incidents or disasters. Notification is provided to other equipment packages that provide the emergency response, including public notification using ITS traveler information systems, where appropriate.
County of Hawaii - Civil Defense Agency County of Hawaii EOC Emergency Early Warning System This equipment package monitors alerting and advisory systems, information collected by ITS surveillance and sensors, and reports from other agencies and uses this information to identify potential, imminent, or in-progress major incidents or disasters. Notification is provided to other equipment packages that provide the emergency response, including public notification using ITS traveler information systems, where appropriate.
County of Kauai - Civil Defense Agency Kauai EOC Emergency Early Warning System This equipment package monitors alerting and advisory systems, information collected by ITS surveillance and sensors, and reports from other agencies and uses this information to identify potential, imminent, or in-progress major incidents or disasters. Notification is provided to other equipment packages that provide the emergency response, including public notification using ITS traveler information systems, where appropriate.
County of Maui - Civil Defense Agency Maui EOC Emergency Early Warning System This equipment package monitors alerting and advisory systems, information collected by ITS surveillance and sensors, and reports from other agencies and uses this information to identify potential, imminent, or in-progress major incidents or disasters. Notification is provided to other equipment packages that provide the emergency response, including public notification using ITS traveler information systems, where appropriate.
Hawaii Department of Transportation - Airports Division HDOT-AIR EOC Emergency Early Warning System This equipment package monitors alerting and advisory systems, information collected by ITS surveillance and sensors, and reports from other agencies and uses this information to identify potential, imminent, or in-progress major incidents or disasters. Notification is provided to other equipment packages that provide the emergency response, including public notification using ITS traveler information systems, where appropriate.
Hawaii Department of Transportation - Harbors Division HDOT-HAR EOC Emergency Early Warning System This equipment package monitors alerting and advisory systems, information collected by ITS surveillance and sensors, and reports from other agencies and uses this information to identify potential, imminent, or in-progress major incidents or disasters. Notification is provided to other equipment packages that provide the emergency response, including public notification using ITS traveler information systems, where appropriate.
Hawaii Department of Transportation - Highways Division HDOT-HWY Traffic Management Center TMC Incident Detection This equipment package identifies and reports incidents to Traffic Operations Personnel. It remotely monitors and controls traffic sensor and surveillance systems that support incident detection and verification. It analyzes and reduces the collected sensor and surveillance data, external alerting and advisory and incident reporting systems, anticipated demand information from intermodal freight depots, special event information, and identifies and reports incidents and hazardous conditions
Hawaii Emergency Management Agency Hawaii State EOC Emergency Early Warning System This equipment package monitors alerting and advisory systems, information collected by ITS surveillance and sensors, and reports from other agencies and uses this information to identify potential, imminent, or in-progress major incidents or disasters. Notification is provided to other equipment packages that provide the emergency response, including public notification using ITS traveler information systems, where appropriate.

List of Flows on this Diagram
Click on Architecture Flow to go to Page with Applicable ITS Standards.
Source Element Architecture Flow Destination Element
Hawaii State EOC incident information HDOT-HWY Traffic Management Center
Hawaii State EOC threat information HDOT-HWY Traffic Management Center
Hawaii State EOC threat information coordination HDOT-AIR EOC
Hawaii State EOC incident report HDOT-AIR EOC
Hawaii State EOC threat information coordination HDOT-HAR EOC
Hawaii State EOC incident report HDOT-HAR EOC
Hawaii State EOC threat information City and County of Honolulu Traffic Management Center
Hawaii State EOC incident information City and County of Honolulu Traffic Management Center
City and County of Honolulu EOC threat information coordination Hawaii State EOC
Kauai EOC incident report Hawaii State EOC
County of Hawaii EOC incident report Hawaii State EOC
City and County of Honolulu EOC incident report Hawaii State EOC
Pacific Tsunami Warning Center alerts and advisories Hawaii State EOC
City and County of Honolulu Traffic Management Center incident information Hawaii State EOC
County of Hawaii EOC threat information coordination Hawaii State EOC
HDOT-HWY Traffic Management Center incident information Hawaii State EOC
Kauai EOC threat information coordination Hawaii State EOC
Maui EOC threat information coordination Hawaii State EOC
HDOT-AIR EOC incident report Hawaii State EOC
HDOT-HAR EOC incident report Hawaii State EOC
HDOT-AIR EOC threat information coordination Hawaii State EOC
HDOT-HAR EOC threat information coordination Hawaii State EOC
City and County of Honolulu Intelligent Operations Center threat information coordination Hawaii State EOC
Pacific Disaster Center alerts and advisories Hawaii State EOC
City and County of Honolulu Intelligent Operations Center incident report Hawaii State EOC
National Weather Service alerts and advisories Hawaii State EOC
Maui EOC incident report Hawaii State EOC
Hawaii State EOC threat information coordination County of Hawaii EOC
Hawaii State EOC incident report County of Hawaii EOC
Hawaii State EOC incident report Kauai EOC
Hawaii State EOC threat information coordination Kauai EOC
Hawaii State EOC incident report Maui EOC
Hawaii State EOC threat information coordination Maui EOC
Hawaii State EOC incident report City and County of Honolulu EOC
Hawaii State EOC threat information coordination City and County of Honolulu EOC
Hawaii State EOC threat information coordination City and County of Honolulu Intelligent Operations Center
Hawaii State EOC incident report City and County of Honolulu Intelligent Operations Center


The Hawaiian language uses two diacritical markings. The 'okina is a glottal stop; and the kahako is a macron. The State of Hawaii strongly encourages the use of Hawaiian diacritical markings. The National ITS Architecture tool, Turbo Architecture, does not allow for the Hawaiian diacritical markings to be input and as such, customized service package diagrams, operational concepts and other outputs from Turbo are unable to reflect the diacritical markings. To ensure consistency in this ITS Architecture website, no Hawaiian diacritical markings will be used.
